One head, three modules
The head carries up to three modules at once, so most jobs run without a tool change. Core+ for mixed work and high downforce, Fast+ for speed and fine detail, plus drag, routing and rotary knife modules.
Summa F Series Vantage · UK Sales and Service Partner

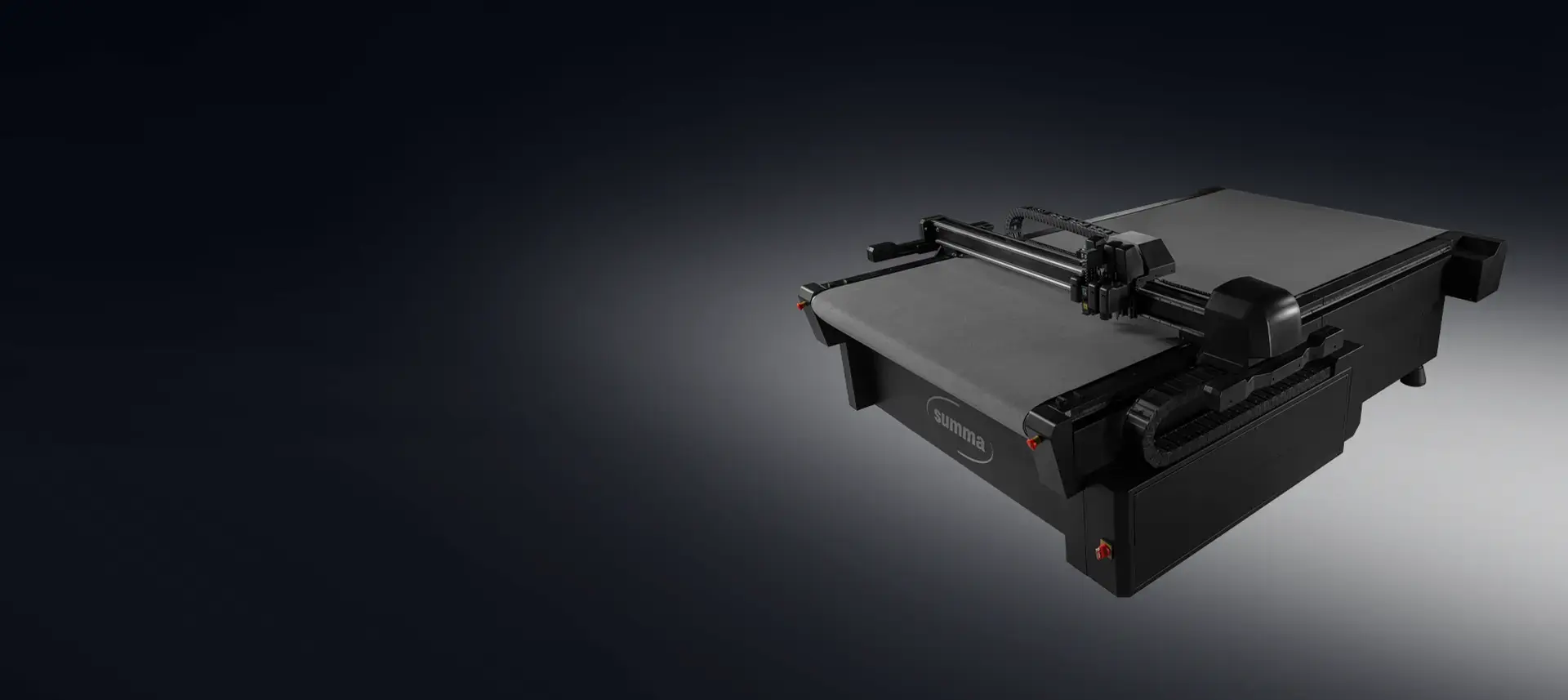

Summa F Series Vantage
Six configurations, one modular head, and a working demonstration machine at Dennison in West Yorkshire.
Bring your own material and cut it on the machine before you decide.
What it is for
One table for board, roll and sheet.
The F Series Vantage combines modular tooling with a flexible flatbed platform, so one cutting system can handle a broad mix of materials and applications. Dennison can help specify the table, modules and tooling around the work you actually produce.
Cutting, routing and creasing
Knife cutting, kiss cutting, creasing, V-cut, perforating, oscillating tools and routing up to 3.7 kW, selected around the material rather than the other way round.
Calibration and tool recognition
Automatic device calibration and tool recognition, optical media thickness measurement and barcode job loading through Summa’s GoProduce software.
Summa's own film. Nothing loads from YouTube until you press play. Watch it on YouTube instead if you prefer.
Models
Six configurations, the same head.
Five working formats, plus the F1625 CF. Every model takes the same modules and tools, so the choice is about the size of the material and the way it arrives.
F1612
Working area 160 × 120 cm
The compact table for teams cutting mostly flexible material, up to 165 cm wide, without giving up floor space.
F1625
Working area 160 × 250 cm
The all-purpose table: full 122 × 244 cm sheets, with room for routing, creasing, prototyping and short-run packaging.
F1625 CF
Working area 160 × 250 cm
The F1625 in a protected configuration: every electrical element shielded from the conductive dust carbon fibre sheds.
F1832
Working area 184 × 320 cm
Built for length: full 152 × 305 cm sheets and prints up to 184 cm wide in one run.
F3220
Working area 327 × 210 cm
3.2 m cutting for wide-format textile, with board materials on the same table.
F3232
Working area 327 × 320 cm
The largest table, with vacuum zones in two rows so one job loads while another cuts.
Full specifications. Summa’s 2026 F Series Vantage brochure covers every model, module and tool. Ranges, configurations and specifications may change; we confirm the current machine and tooling in any recommendation or quotation.
Download the Summa F Series Vantage brochurePDF, 15 MBMaterials
What will it cut?
The module drives the motion and the tool defines the cut, so the material is what decides the machine. Filter by type or type in what you have. Thickness, format and volume refine it, which is what a test cut is for.
BoardStructural sheet that has to be held flat and cut clean. Foam PVC, display board, corrugated, ACM, MDF.
FlexibleRoll stock that has to stay registered around every contour. Vinyl, banner, textile.
SpecialtyEverything that needs its own technique. Composites, rubber, leather, metals, protective films.
27 materials
-
Foam PVC, 5 to 8 mm
Core+
Rigid material cutout tool, or corrugated tool
-
Foam PVC, 10 / 20 / 30 mm
Router
Standard Router module or HF Router module
-
Acrylic, 10 / 20 mm
HF Router
HF Router module with acrylic bits
-
Display board
Core+
Rigid material cutout tool, EOT, creasing or bevel tools
-
Foam board
Core+
EOT, V-cut or bevel cut
-
Honeycomb and papercore board
Core+
POT, V-cut or EOT
-
Corrugated board
Core+
Corrugated tool and creasing tools
-
ACM, Dibond
Router
Standard or HF Router module with coated bits
-
MDF
Router
Standard or HF Router module with multipurpose bits
-
Folding carton
Fast+ or Core+
Kiss cut, high precision cutout and creasing tools
-
Corruplast
Core+
Rigid material cutout tool, POT or EOT above 8 mm
-
PVC banner
Fast+ or Core+
High precision cutout, rigid material cutout, or rotary knife
-
Vinyl
Fast+ or Core+
Kiss cut tool or high precision cutout tool
-
Decal vinyl
Fast+ or Core+
Kiss cut or high precision cutout tool
-
Textile
Rotary knife
Rotary Knife Module on an F Series, or laser on an L Series depending on composition
-
Aluminium
HF Router
HF Router module with aluminium bits
-
Felt
Core+
POT, V-cut on straight lines only, or bevel cut
-
Reflective roll
Fast+ or Core+
Kiss cut or high precision cutout tooling
-
Paint protection film, PPF
Fast+ or Core+
Kiss cut or high precision cutout tool
-
DTF film
Fast+ or Core+
Kiss cut tooling
-
Leather
Core+
POT or kiss cut tooling
-
PVC
Fast+ or Core+
Kiss cut, or POT on F Series tables
-
Gaskets
Core+
POT or rigid material cutout tool
-
Rubber
Core+
POT or HF Router module
-
Glass fibre
HF Router
HF Router module, or POT for thin laminates
-
Carbon fibre
HF Router
HF Router module
-
Prepreg
Core+
POT
Nothing here matches that, which does not mean we cannot cut it. or send us a sample.
Materials, modules and tooling as published by Summa. Polycarbonate, polypropylene and Kevlar are named by Summa without a tooling recommendation, so they are not listed above. Ask and we will find out.
Summa through Dennison
One UK partner, from first cut to service.
Dennison is Summa UK Sales and Service Partner. The engineers who help you choose the machine are the engineers who install and look after it.
Application advice
The machine, modules and tooling specified around the material you cut and the output you need.
A test cut first
Your own material on a working Summa in West Yorkshire, before a decision is made.
Installation and training
Commissioning on your site by Dennison engineers, and operators trained on your own jobs.
Service for its working life
Planned maintenance, breakdown support, parts and technical help from the UK partner that installed it.
See the F Series Vantage working.
Bring your own material to the demonstration machine in West Yorkshire, and see it cut before you decide.
